Ich habe mir ein WLAN-Dashboard gebaut. Fokus liegt diesmal nicht auf der Intrusion Detection und Alarmierung per eMail, vielmehr möchte ich mir den generellen Zustand meines WLANs in einer Art Cockpit anzeigen lassen.
Dazu verwende ich Grafana. Installiert einfach Debian (bei mir Version 12 in einer VM) Dann folgt ihr dieser Einleitung für die Installation von Grafana, influxdb und Telegraf.
Konfiguration des Grafana-Dashboards

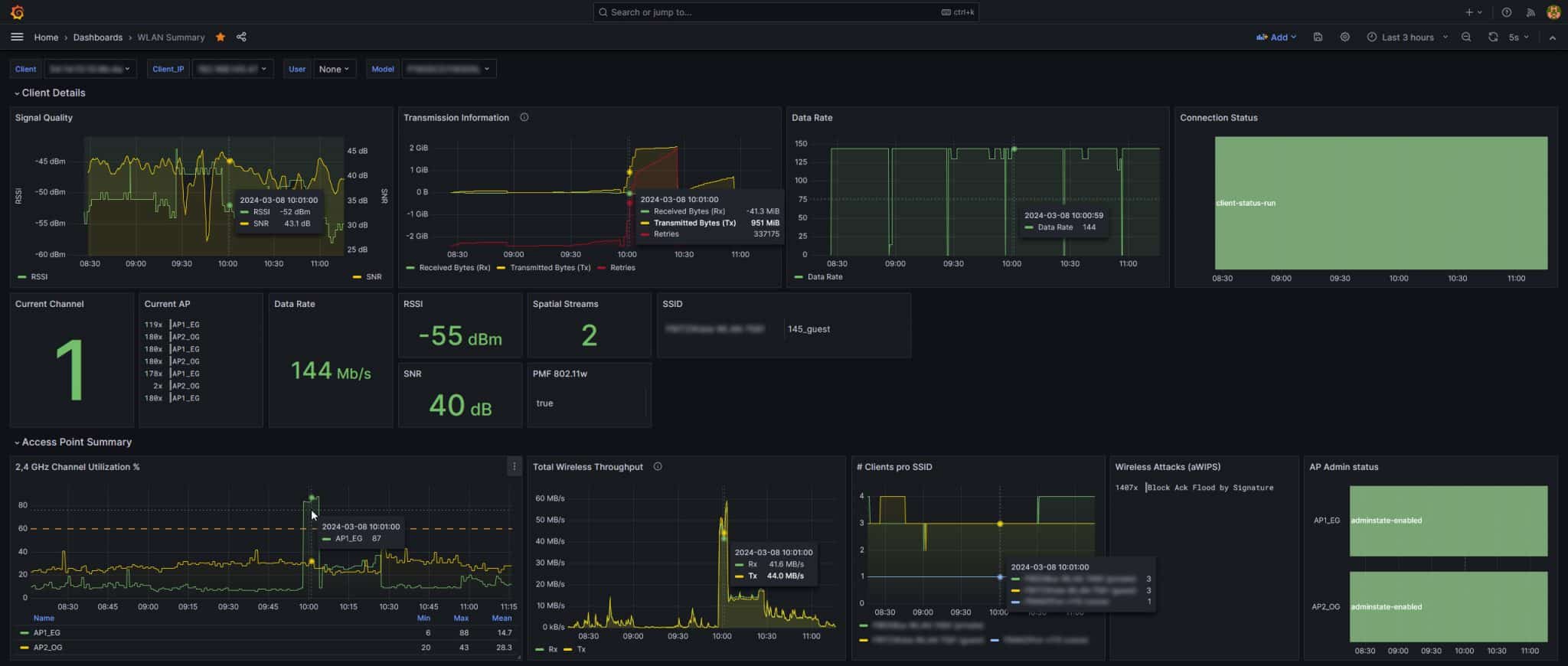

Wenn ihr Grafana installiert habt, könnt ihr meine Konfiguration für das Dashboard nutzen. Das Dashboard zeigt euch folgende Parameter pro Client an:
- Signalqualität
- Transmission Infos
- Datenrate
- Clientverlauf online / offline
- WLAN-Kanal
- AP-Mobility-History
- Aktuelle Datenrate, RSSI, SNR
- Spatial Streams
- Protected Management Frames
- Verbundene SSID sowie verwendete Policy
Darunter findet ihr den gesamten WLAN-Status mit folgenden Informationen:
- Kanalauslastung pro AP
- Gesamtauslastung WLAN-Interfaces über alle APs konsolidiert
- Anzahl Endgeräte pro SSID
- WLAN-Angriffsvektoren
- AP online / offline
{
"annotations": {
"list": [
{
"builtIn": 1,
"datasource": {
"type": "grafana",
"uid": "-- Grafana --"
},
"enable": true,
"hide": true,
"iconColor": "rgba(0, 211, 255, 1)",
"name": "Annotations & Alerts",
"type": "dashboard"
}
]
},
"description": "test",
"editable": true,
"fiscalYearStartMonth": 0,
"graphTooltip": 2,
"id": 1,
"links": [],
"liveNow": false,
"panels": [
{
"collapsed": false,
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 0
},
"id": 4,
"panels": [],
"title": "Client Details",
"type": "row"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"drawStyle": "line",
"fillOpacity": 10,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "RSSI"
},
"properties": [
{
"id": "unit",
"value": "dBm"
},
{
"id": "custom.axisLabel",
"value": "RSSI"
}
]
},
{
"matcher": {
"id": "byName",
"options": "SNR"
},
"properties": [
{
"id": "unit",
"value": "dB"
},
{
"id": "custom.axisLabel",
"value": "SNR"
}
]
}
]
},
"gridPos": {
"h": 8,
"w": 6,
"x": 0,
"y": 1
},
"id": 5,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"mode": "multi",
"sort": "none"
}
},
"targets": [
{
"alias": "RSSI",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/traffic-stats",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"most_recent_rssi"
],
"type": "field"
},
{
"params": [],
"type": "distinct"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
},
{
"alias": "SNR",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"hide": false,
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/traffic-stats",
"orderByTime": "ASC",
"policy": "default",
"refId": "B",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"most_recent_snr"
],
"type": "field"
},
{
"params": [],
"type": "distinct"
},
{
"params": [
10
],
"type": "moving_average"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "Signal Quality",
"type": "timeseries"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"description": "WLAN-Controller resets bytes counted after 30 minutes. Thus values are rolling cumulative during that period.",
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"drawStyle": "line",
"fillOpacity": 10,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "smooth",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "bytes"
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Retries"
},
"properties": [
{
"id": "color",
"value": {
"fixedColor": "dark-red",
"mode": "shades"
}
},
{
"id": "custom.scaleDistribution",
"value": {
"linearThreshold": 100000,
"type": "linear"
}
},
{
"id": "unit",
"value": "none"
},
{
"id": "custom.axisPlacement",
"value": "hidden"
},
{
"id": "custom.stacking",
"value": {
"group": "B",
"mode": "normal"
}
}
]
}
]
},
"gridPos": {
"h": 8,
"w": 6,
"x": 6,
"y": 1
},
"id": 10,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"mode": "multi",
"sort": "none"
}
},
"targets": [
{
"alias": "Received Bytes (Rx)",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"hide": false,
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/traffic-stats",
"orderByTime": "ASC",
"policy": "default",
"refId": "B",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"bytes_rx"
],
"type": "field"
},
{
"params": [],
"type": "mean"
},
{
"params": [
"2"
],
"type": "moving_average"
},
{
"params": [
"* -1"
],
"type": "math"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
},
{
"alias": "Transmitted Bytes (Tx)",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"hide": false,
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/traffic-stats",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"bytes_tx"
],
"type": "field"
},
{
"params": [],
"type": "mean"
},
{
"params": [
"2"
],
"type": "moving_average"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
},
{
"alias": "Retries",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"hide": false,
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/traffic-stats",
"orderByTime": "ASC",
"policy": "default",
"refId": "C",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"data_retries"
],
"type": "field"
},
{
"params": [],
"type": "distinct"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "Transmission Information",
"type": "timeseries"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"drawStyle": "line",
"fillOpacity": 10,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": false,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"fieldMinMax": false,
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": []
},
"gridPos": {
"h": 8,
"w": 6,
"x": 12,
"y": 1
},
"id": 8,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "10.2.2",
"targets": [
{
"alias": "Data Rate",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [],
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/traffic-stats",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"speed"
],
"type": "field"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "Data Rate",
"type": "timeseries"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "continuous-GrYlRd"
},
"custom": {
"fillOpacity": 70,
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineWidth": 0,
"spanNulls": false
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": " "
},
"properties": [
{
"id": "mappings",
"value": [
{
"options": {
"client-status-authenticating": {
"color": "orange",
"index": 2
},
"client-status-idle": {
"color": "orange",
"index": 0
},
"client-status-ip-learning": {
"color": "red",
"index": 1
}
},
"type": "value"
}
]
}
]
}
]
},
"gridPos": {
"h": 8,
"w": 6,
"x": 18,
"y": 1
},
"id": 7,
"options": {
"alignValue": "left",
"legend": {
"displayMode": "table",
"placement": "bottom",
"showLegend": false
},
"mergeValues": true,
"rowHeight": 0.9,
"showValue": "auto",
"tooltip": {
"mode": "single",
"sort": "none"
}
},
"pluginVersion": "10.2.2",
"targets": [
{
"alias": " ",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [],
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/common-oper-data",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"co_state"
],
"type": "field"
}
]
],
"tags": [
{
"key": "client_mac::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "Connection Status",
"type": "state-timeline"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "none"
},
"overrides": []
},
"gridPos": {
"h": 6,
"w": 2,
"x": 0,
"y": 9
},
"id": 19,
"options": {
"colorMode": "value",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "auto",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "10.2.2",
"targets": [
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/dot11-oper-data",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"current_channel"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "Current Channel",
"type": "stat"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"gridPos": {
"h": 6,
"w": 2,
"x": 2,
"y": 9
},
"id": 18,
"options": {
"dedupStrategy": "numbers",
"enableLogDetails": false,
"prettifyLogMessage": false,
"showCommonLabels": false,
"showLabels": false,
"showTime": false,
"sortOrder": "Descending",
"wrapLogMessage": false
},
"pluginVersion": "10.2.2",
"targets": [
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [],
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/common-oper-data",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"ap_name"
],
"type": "field"
}
]
],
"tags": [
{
"key": "client_mac::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "Current AP",
"type": "logs"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
}
]
},
"unit": "Mbits"
},
"overrides": []
},
"gridPos": {
"h": 6,
"w": 2,
"x": 4,
"y": 9
},
"id": 13,
"options": {
"colorMode": "value",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "auto",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "10.2.2",
"targets": [
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/traffic-stats",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"speed"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "Data Rate",
"type": "stat"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "dBm"
},
"overrides": []
},
"gridPos": {
"h": 3,
"w": 2,
"x": 6,
"y": 9
},
"id": 16,
"options": {
"colorMode": "value",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "auto",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "10.2.2",
"targets": [
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/traffic-stats",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"most_recent_rssi"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "RSSI",
"type": "stat"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "none"
},
"overrides": []
},
"gridPos": {
"h": 3,
"w": 2,
"x": 8,
"y": 9
},
"id": 14,
"options": {
"colorMode": "value",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "auto",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "10.2.2",
"targets": [
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/traffic-stats",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"spatial_stream"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "Spatial Streams",
"type": "stat"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"custom": {
"align": "auto",
"cellOptions": {
"type": "auto"
},
"filterable": true,
"inspect": false
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Time"
},
"properties": [
{
"id": "custom.hidden",
"value": true
}
]
}
]
},
"gridPos": {
"h": 3,
"w": 4,
"x": 10,
"y": 9
},
"id": 24,
"options": {
"cellHeight": "sm",
"footer": {
"countRows": false,
"fields": "",
"reducer": [
"sum"
],
"show": false
},
"showHeader": false
},
"pluginVersion": "10.2.2",
"targets": [
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [],
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/dot11-oper-data",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "table",
"select": [
[
{
"params": [
"vap_ssid"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
],
[
{
"params": [
"policy_profile"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "SSID",
"transformations": [],
"type": "table"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "dB"
},
"overrides": []
},
"gridPos": {
"h": 3,
"w": 2,
"x": 6,
"y": 12
},
"id": 12,
"options": {
"colorMode": "value",
"graphMode": "none",
"justifyMode": "auto",
"orientation": "auto",
"reduceOptions": {
"calcs": [
"lastNotNull"
],
"fields": "",
"values": false
},
"textMode": "auto",
"wideLayout": true
},
"pluginVersion": "10.2.2",
"targets": [
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/traffic-stats",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"most_recent_snr"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "SNR",
"type": "stat"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"custom": {
"align": "auto",
"cellOptions": {
"type": "auto"
},
"filterable": true,
"inspect": false
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
}
},
"overrides": [
{
"matcher": {
"id": "byName",
"options": "Time"
},
"properties": [
{
"id": "custom.hidden",
"value": true
}
]
}
]
},
"gridPos": {
"h": 3,
"w": 2,
"x": 8,
"y": 12
},
"id": 20,
"options": {
"cellHeight": "lg",
"footer": {
"countRows": false,
"fields": "",
"reducer": [
"sum"
],
"show": false
},
"showHeader": false
},
"pluginVersion": "10.2.2",
"targets": [
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [],
"measurement": "Cisco-IOS-XE-wireless-client-oper:client-oper-data/dot11-oper-data",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "table",
"select": [
[
{
"params": [
"dot11w_enabled"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "ms_mac_address::tag",
"operator": "=~",
"value": "/^$Client$/"
}
]
}
],
"title": "PMF 802.11w",
"transformations": [],
"type": "table"
},
{
"collapsed": false,
"gridPos": {
"h": 1,
"w": 24,
"x": 0,
"y": 15
},
"id": 3,
"panels": [],
"title": "Access Point Summary",
"type": "row"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"drawStyle": "line",
"fillOpacity": 10,
"gradientMode": "opacity",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": true,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "dashed"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "orange",
"value": 60
}
]
}
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 8,
"x": 0,
"y": 16
},
"id": 2,
"options": {
"legend": {
"calcs": [
"min",
"max",
"mean"
],
"displayMode": "table",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"mode": "single",
"sort": "none"
}
},
"targets": [
{
"alias": "AP1_EG",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"measurement": "Cisco-IOS-XE-wireless-rrm-oper:rrm-oper-data/rrm-measurement",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"load/cca_util_percentage"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "wtp_mac::tag",
"operator": "=",
"value": "xx:xx:xx:xx:xx:xx"
},
{
"condition": "AND",
"key": "radio_slot_id::tag",
"operator": "=",
"value": "0"
}
]
},
{
"alias": "AP2_OG",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"hide": false,
"measurement": "Cisco-IOS-XE-wireless-rrm-oper:rrm-oper-data/rrm-measurement",
"orderByTime": "ASC",
"policy": "default",
"refId": "B",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"load/cca_util_percentage"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "wtp_mac::tag",
"operator": "=",
"value": "yy:yy:yy:yy:yy:yy"
},
{
"condition": "AND",
"key": "radio_slot_id::tag",
"operator": "=",
"value": "0"
}
]
},
{
"alias": "AP3_UG",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"hide": false,
"measurement": "Cisco-IOS-XE-wireless-rrm-oper:rrm-oper-data/rrm-measurement",
"orderByTime": "ASC",
"policy": "default",
"refId": "C",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"load/cca_util_percentage"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "wtp_mac::tag",
"operator": "=",
"value": "zz:zz:zz:zz:zz:zz"
},
{
"condition": "AND",
"key": "radio_slot_id::tag",
"operator": "=",
"value": "0"
}
]
}
],
"title": "2,4 GHz Channel Utilization %",
"type": "timeseries"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"description": "30sec average on interface of the WLC. All WLANs centrally switched.\nint g1\nload-interval 30\n",
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"barAlignment": 0,
"drawStyle": "line",
"fillOpacity": 10,
"gradientMode": "none",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": true,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "KBs"
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 5,
"x": 8,
"y": 16
},
"id": 22,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"mode": "multi",
"sort": "none"
}
},
"targets": [
{
"alias": "Rx",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"measurement": "Cisco-IOS-XE-interfaces-oper:interfaces/interface/statistics",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"rx_kbps"
],
"type": "field"
},
{
"params": [],
"type": "mean"
}
]
],
"tags": [
{
"key": "name::tag",
"operator": "=",
"value": "GigabitEthernet1"
}
]
},
{
"alias": "Tx",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"hide": false,
"measurement": "Cisco-IOS-XE-interfaces-oper:interfaces/interface/statistics",
"orderByTime": "ASC",
"policy": "default",
"refId": "B",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"tx_kbps"
],
"type": "field"
},
{
"params": [],
"type": "mean"
}
]
],
"tags": [
{
"key": "name::tag",
"operator": "=",
"value": "GigabitEthernet1"
}
]
}
],
"title": "Total Wireless Throughput",
"type": "timeseries"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "palette-classic"
},
"custom": {
"axisBorderShow": false,
"axisCenteredZero": false,
"axisColorMode": "text",
"axisLabel": "",
"axisPlacement": "auto",
"axisSoftMin": 0,
"barAlignment": 0,
"drawStyle": "line",
"fillOpacity": 10,
"gradientMode": "opacity",
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineInterpolation": "linear",
"lineStyle": {
"fill": "solid"
},
"lineWidth": 1,
"pointSize": 5,
"scaleDistribution": {
"type": "linear"
},
"showPoints": "auto",
"spanNulls": true,
"stacking": {
"group": "A",
"mode": "none"
},
"thresholdsStyle": {
"mode": "off"
}
},
"fieldMinMax": false,
"mappings": [],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
},
{
"color": "red",
"value": 80
}
]
},
"unit": "none"
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 4,
"x": 13,
"y": 16
},
"id": 1,
"options": {
"legend": {
"calcs": [],
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"tooltip": {
"mode": "multi",
"sort": "none"
}
},
"targets": [
{
"alias": "WLAN1 (private)",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"measurement": "Cisco-IOS-XE-wireless-mobility-oper:mobility-oper-data/wlan-client-limit",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"curr_clients_count"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "wlan_profile::tag",
"operator": "=",
"value": "WLAN 1"
}
]
},
{
"alias": "WLAN 2 (guest)",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"hide": false,
"measurement": "Cisco-IOS-XE-wireless-mobility-oper:mobility-oper-data/wlan-client-limit",
"orderByTime": "ASC",
"policy": "default",
"refId": "B",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"curr_clients_count"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "wlan_profile::tag",
"operator": "=",
"value": "WLAN 2"
}
]
},
{
"alias": "WLAN 3 (voice)",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"hide": false,
"measurement": "Cisco-IOS-XE-wireless-mobility-oper:mobility-oper-data/wlan-client-limit",
"orderByTime": "ASC",
"policy": "default",
"refId": "C",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"curr_clients_count"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "wlan_profile::tag",
"operator": "=",
"value": "WLAN 3"
}
]
}
],
"title": "# Clients pro SSID",
"type": "timeseries"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"gridPos": {
"h": 9,
"w": 3,
"x": 17,
"y": 16
},
"id": 23,
"options": {
"dedupStrategy": "numbers",
"enableLogDetails": false,
"prettifyLogMessage": false,
"showCommonLabels": false,
"showLabels": false,
"showTime": false,
"sortOrder": "Descending",
"wrapLogMessage": false
},
"pluginVersion": "10.2.2",
"targets": [
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"alarm_string::field"
],
"type": "tag"
}
],
"measurement": "Cisco-IOS-XE-wireless-awips-oper:awips-oper-data/awips-alarm",
"orderByTime": "ASC",
"policy": "default",
"refId": "A",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"alarm_string"
],
"type": "field"
}
]
],
"tags": []
}
],
"title": "Wireless Attacks (aWIPS)",
"type": "logs"
},
{
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"fieldConfig": {
"defaults": {
"color": {
"mode": "continuous-GrYlRd"
},
"custom": {
"fillOpacity": 70,
"hideFrom": {
"legend": false,
"tooltip": false,
"viz": false
},
"insertNulls": false,
"lineWidth": 0,
"spanNulls": false
},
"mappings": [
{
"options": {
"adminstate-disabled": {
"color": "red",
"index": 0
}
},
"type": "value"
}
],
"thresholds": {
"mode": "absolute",
"steps": [
{
"color": "green",
"value": null
}
]
}
},
"overrides": []
},
"gridPos": {
"h": 9,
"w": 4,
"x": 20,
"y": 16
},
"id": 6,
"options": {
"alignValue": "left",
"legend": {
"displayMode": "list",
"placement": "bottom",
"showLegend": true
},
"mergeValues": true,
"rowHeight": 0.9,
"showValue": "auto",
"tooltip": {
"mode": "single",
"sort": "none"
}
},
"targets": [
{
"alias": "AP1_EG",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"hide": false,
"measurement": "Cisco-IOS-XE-wireless-access-point-oper:access-point-oper-data/capwap-data",
"orderByTime": "ASC",
"policy": "default",
"refId": "a",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"ap_state/ap_admin_state"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "wtp_mac::tag",
"operator": "=",
"value": "xx:xx:xx:xx:xx:xx"
}
]
},
{
"alias": "AP2_OG",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"measurement": "Cisco-IOS-XE-wireless-access-point-oper:access-point-oper-data/capwap-data",
"orderByTime": "ASC",
"policy": "default",
"refId": "b",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"ap_state/ap_admin_state"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "wtp_mac::tag",
"operator": "=",
"value": "yy:yy:yy:yy:yy:yy"
}
]
},
{
"alias": "AP3_UG",
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"groupBy": [
{
"params": [
"$__interval"
],
"type": "time"
},
{
"params": [
"null"
],
"type": "fill"
}
],
"hide": false,
"measurement": "Cisco-IOS-XE-wireless-access-point-oper:access-point-oper-data/capwap-data",
"orderByTime": "ASC",
"policy": "default",
"refId": "c",
"resultFormat": "time_series",
"select": [
[
{
"params": [
"ap_state/ap_admin_state"
],
"type": "field"
},
{
"params": [],
"type": "last"
}
]
],
"tags": [
{
"key": "wtp_mac::tag",
"operator": "=",
"value": "zz:zz:zz:zz:zz:zz"
}
]
}
],
"title": "AP Admin status",
"type": "state-timeline"
}
],
"refresh": "5s",
"schemaVersion": 38,
"tags": [],
"templating": {
"list": [
{
"current": {
"selected": false,
"text": "aa:bb:cc:dd:ee:ff",
"value": "aa:bb:cc:dd:ee:ff"
},
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"definition": "SHOW TAG VALUES WITH KEY = \"ms_mac_address\"",
"hide": 0,
"includeAll": false,
"multi": false,
"name": "Client",
"options": [],
"query": "SHOW TAG VALUES WITH KEY = \"ms_mac_address\"",
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 0,
"type": "query"
},
{
"current": {
"selected": false,
"text": "192.168.1.4",
"value": "192.168.1.4"
},
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"definition": "SELECT distinct(\"ipv4_binding/ip_key/ip_addr\") FROM \"Cisco-IOS-XE-wireless-client-oper:client-oper-data/sisf-db-mac\" WHERE (\"mac_addr\" =~ /^$Client$/)",
"hide": 0,
"includeAll": false,
"multi": false,
"name": "Client_IP",
"options": [],
"query": "SELECT distinct(\"ipv4_binding/ip_key/ip_addr\") FROM \"Cisco-IOS-XE-wireless-client-oper:client-oper-data/sisf-db-mac\" WHERE (\"mac_addr\" =~ /^$Client$/)",
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 0,
"type": "query"
},
{
"current": {
"isNone": true,
"selected": false,
"text": "None",
"value": ""
},
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"definition": "SELECT distinct(\"username\") FROM \"Cisco-IOS-XE-wireless-client-oper:client-oper-data/common-oper-data\" WHERE (\"client_mac\" =~ /^$Client$/)",
"hide": 0,
"includeAll": false,
"multi": false,
"name": "User",
"options": [],
"query": "SELECT distinct(\"username\") FROM \"Cisco-IOS-XE-wireless-client-oper:client-oper-data/common-oper-data\" WHERE (\"client_mac\" =~ /^$Client$/)",
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 0,
"type": "query"
},
{
"current": {
"selected": false,
"text": "Client1",
"value": "Client1"
},
"datasource": {
"type": "influxdb",
"uid": "ee83eb46-c7f2-4fdf-ac82-54c9764be187"
},
"definition": "SELECT distinct(\"device_name\") FROM \"Cisco-IOS-XE-wireless-client-oper:client-oper-data/dc-info\" WHERE (\"client_mac\" =~ /^$Client$/)",
"hide": 0,
"includeAll": false,
"multi": false,
"name": "Model",
"options": [],
"query": "SELECT distinct(\"device_name\") FROM \"Cisco-IOS-XE-wireless-client-oper:client-oper-data/dc-info\" WHERE (\"client_mac\" =~ /^$Client$/)",
"refresh": 1,
"regex": "",
"skipUrlSync": false,
"sort": 0,
"type": "query"
}
]
},
"time": {
"from": "now-6h",
"to": "now"
},
"timepicker": {},
"timezone": "",
"title": "WLAN Summary",
"uid": "a29fff7e-3281-43fc-b18e-06a302bc72dc",
"version": 39,
"weekStart": ""
}Konfiguration des Cisco 9800 WLC
Folgende Konfiguration aktiviert die Telemetry des 9800 WLC und schickt sie an Grafana. Ihr müsst sowohl die Source-IP des WLAN-Controllers sowie die Receiver-IP von Grafana anpassen. Ansonsten liefern euch die Telemetrie-Subscription alle Infos, die ihr für mein Dashboard oben benötigt.
Achtung: Die Nummerierung der IETF-Subscriptions auf dem Controller muss eindeutig sein.
int g1
load-interval 30
netconf ssh
netconf-yang
telemetry ietf subscription 1
encoding encode-kvgpb
filter xpath /wireless-client-oper:client-oper-data/traffic-stats
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 2
encoding encode-kvgpb
filter xpath /wireless-client-oper:client-oper-data/dc-info
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 3
encoding encode-kvgpb
filter xpath /wireless-client-oper:client-oper-data/sisf-db-mac
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 4
encoding encode-kvgpb
filter xpath /wireless-client-oper:client-oper-data/client-wsa-info
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 5
encoding encode-kvgpb
filter xpath /wireless-access-point-oper:access-point-oper-data/radio-oper-stats
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 6
encoding encode-kvgpb
filter xpath /wireless-access-point-oper:access-point-oper-data/ap-name-mac-map
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 7
encoding encode-kvgpb
filter xpath /wireless-access-point-oper:access-point-oper-data/capwap-data
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 8
encoding encode-kvgpb
filter xpath /wireless-access-point-oper:access-point-oper-data/radio-oper-data
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 9
encoding encode-kvgpb
filter xpath /wireless-access-point-oper:access-point-oper-data/ssid-counters
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 10
encoding encode-kvgpb
filter xpath /wireless-client-oper:client-oper-data/common-oper-data
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 11
encoding encode-kvgpb
filter xpath /wireless-rrm-oper:rrm-oper-data/rrm-measurement
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 12
encoding encode-kvgpb
filter xpath /wireless-mobility-oper:mobility-oper-data/mobility-node-data
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 13
encoding encode-kvgpb
filter xpath /wireless-mobility-oper:mobility-oper-data/wlan-client-limit
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 14
encoding encode-kvgpb
filter xpath /wireless-client-oper:client-oper-data/dot11-oper-data
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 15
encoding encode-kvgpb
filter xpath /interfaces-ios-xe-oper:interfaces/interfaces-ios-xe-oper:interface/interfaces-ios-xe-oper:statistics
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
telemetry ietf subscription 16
encoding encode-kvgpb
filter xpath /wireless-oper-awips:awips-oper-data/wireless-oper-awips:awips-alarm
source-address 192.168.1.3
stream yang-push
update-policy periodic 1000
receiver ip address 192.168.1.2 57000 protocol grpc-tcp
